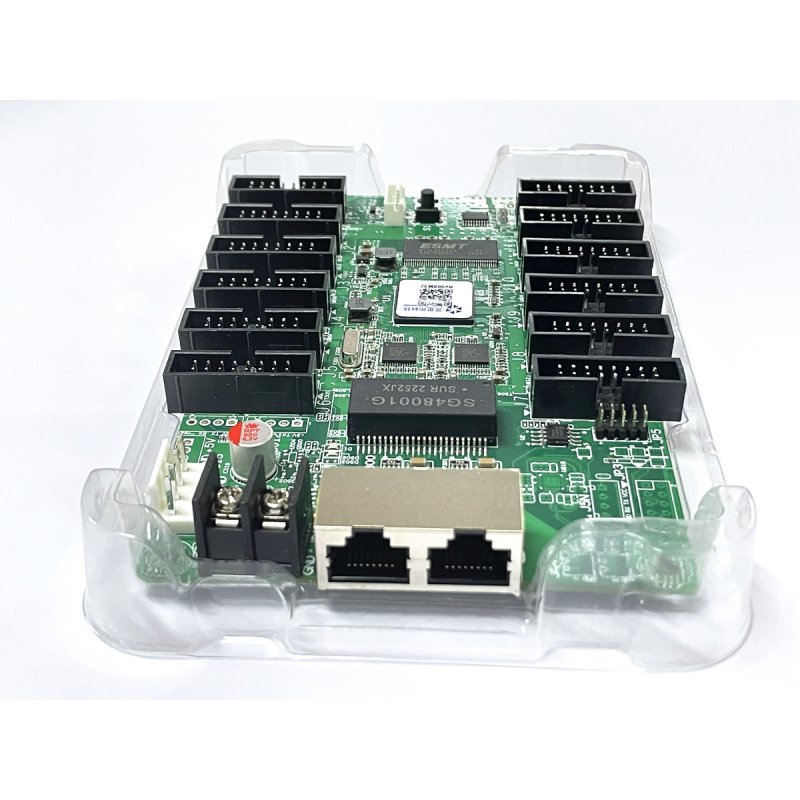

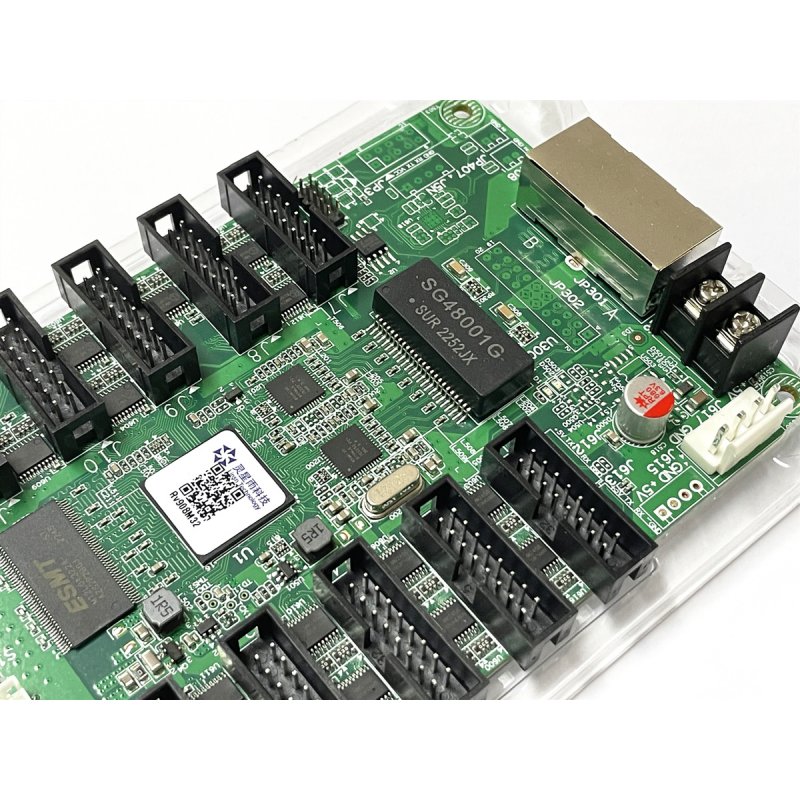

LED control card 1/32 Linsn RV908M RV908M32 for synchronous LED video display.
Built-in 12 hub75 ports (supports 32 scans)
Supports 12-bit color HDMI input (with 9th generation sending card)
Using an 18-bit signal processor and maximum support of 18-bit (260,000) grayscale (red, green, blue separately)
Features:
1. Built-in 12 16-pin HUB75 interface, no extra hub required
2. supports 12-bit color HDMI input (9th generation sending card required)
3. using 18-bit signal processor, maximum support 18 bits (260,000) gray (each red, green and blue)
4. One card supports maximum 1024X256 pixels and 1024 levels of chromaticity correction of one pixel
5. Supports single card color space conversion
6. Support readback configuration file
7. Support program replication
8. Supports backup with dual receiver cards for demanding display
9. Supports pixel error detection (requires dedicated chip support)
10. Support BER test for network cable
11. Flat cable error detection support
12. Support cabinet door control (open/close)
13. Two-line fan speed monitoring
14. Three voltage control lines: one for system, two for cabinet power
15. Temperature monitoring
16. Humidity control (humidity sensor sold separately)
17. Smoke control (smoke module sold separately)
18. In accordance with EU CE-EMC standards
serial number: 888888
The LED card does not come with software. Software Download Center: http://en.lingxingyu.cn/list/Software-download
